The Ford V-8 Engine Workshop
 Y-Block
239, 272, 292, 312

1956 Thunderbird 312
1956 Thunderbird 312
Y-Block
Bore Stroke
  3.11" 3.30" 3.44"
3.50" 239
3.63"   272
3.75"   292
3.80"     312

Factory bore/stroke combinations are shown in bold

Major specs available now.

292 engine in car
1954 Y-block drawings
left, 1954 239 Mercury -- right, 1954 239 Ford
Description of cylinder head features coming soon. Really.

1957 312 4-bbl Cylinder Head
Casting number ECZ-6090-C
312 cylinder head intake face

312 cylinder head exhaust face

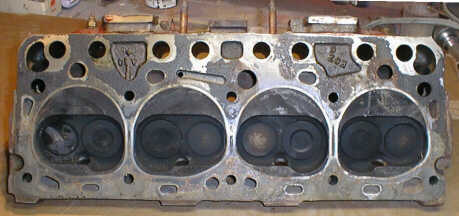

312 cylinder head combustion chambers

1957 312 4-bbl Intake Manifold
Casting number ECZ-9425-B
312 4-bbl intake manifold

1957 312 4-bbl Piston and Connecting Rod Assembly

312 piston and rod assembly 		The Y-block piston is flat topped. The piston pin is a sliding fit in both the piston and the connecting rod, secured by snap rings. The connecting rod features 3/8" bolts.
